Parameter

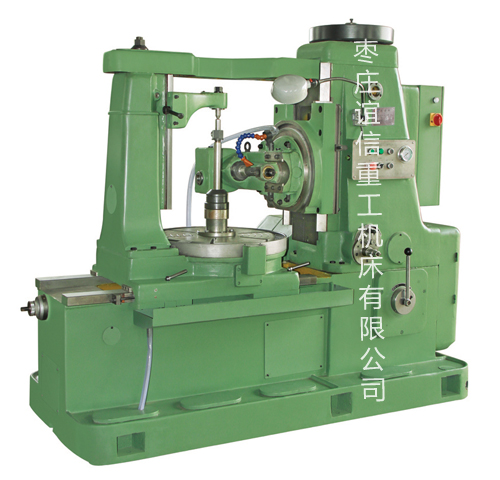

 Y38-1

 The maximum modulus

 Steel(mm)

 6

 Cast iron(mm)

 8

 Maximum outer diameter cylindrical roller spur gear

 External fixator(mm)

 450

 No External fixator(mm)

 800

 Roll the maximum outer diameter of the cylindrical helical gear

 When the helix angle of 30 °(mm)

 500

 When the helix angle of 60 °(mm)

 190

 Maximum vertical stroke length of the hob(mm)

 275

 Hob maximum diameter(mm)

 120

 The distance between the hob spindle gear hypocotyl

 Maximum(mm)

 500

 Least(mm)

 Without removing the turret plate cover and pin

 55

 Unload tool slide cover and pin

 30

 From the table to the minimum distance of hob spindle axis(mm)

 195

 The hob can change to spindle diameter(mm)

 22  27  32

 Hob axial movement stroke length(mm)

 30

 Activities of the rear pillar bracket stroke length(mm)

 200

 Table hole diameter(mm)

 80

 Workbench heart axis diameter(mm)

 35

 Indexing worm pitch diameter(mm)

 546

 Indexing worm pitch diameter(mm)

 68

 Hob spindle speed

 Series

 47.5

 Range ( R / min )

 192

 Workpiece per turn the Hob vertical feed rate (mm / rev)

 0.25-3

 Power of main motor(kw)

 3

 Main motor speed (rev / min)

 1420

 Weight (with attachments)(kg)

 ≈3300

 Overall size (L × W × H)(mm)

 2290×1100×1910
