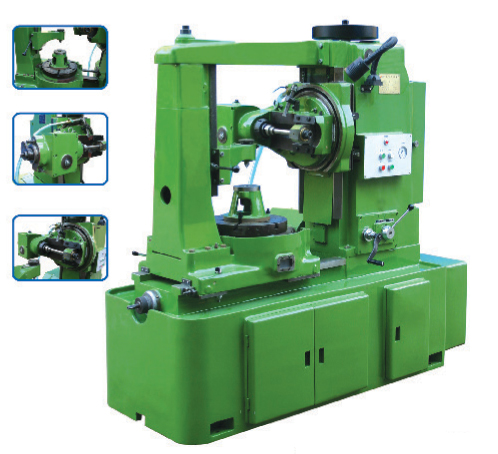

Hobbing machine

   Y3150





 Parameter

 Y3150

 Maximum cutting modulus

 Steel(mm)

 5

 Cast iron(mm)

 6

 Maximum diameter of the process spur gear

 External fixator(mm)

 350

 No External fixator(mm)

 500

 Maximum diameter for machining cylindrical helical gear

 When the rotation angle of 30 °(mm)

 370

 When the rotation angle of 45 °(mm)

 250

 Maximum vertical stroke length of the hob(mm)

 260

 Maximum roll cut length(mm)

 240

 Hob spindle to table distance between the centerline

 Maximum(mm)

 320

 Least(Work table to hob spindle distance is less than 85 mm to 30 mm)

 25

 Minimum distance of the work surface to the hob spindle centerline(mm)

 170

 The hob can change to spindle diameter(mm)

 22  27  32

 Hob maximum diameter(mm)

 120

 Table hole diameter(mm)

 60

 Workbench heart axis diameter(mm)

 30

 Hob spindle speed

 Series

 8Kind

 Range (r / min)

 50-275

 Workpiece per turn the Hob vertical feed rate (mm / rev)

 0.24-4.25

 Power of main motor(kw)

 3

 Main motor speed (rev / min)

 1430

 Pump motor power(kw)

 0.125

 Pump motor speed (rev / min)

 2790

 Weight (with attachments)(kg)

 2600

 Overall size (L × W × H)(mm)

 1825×935×1730
