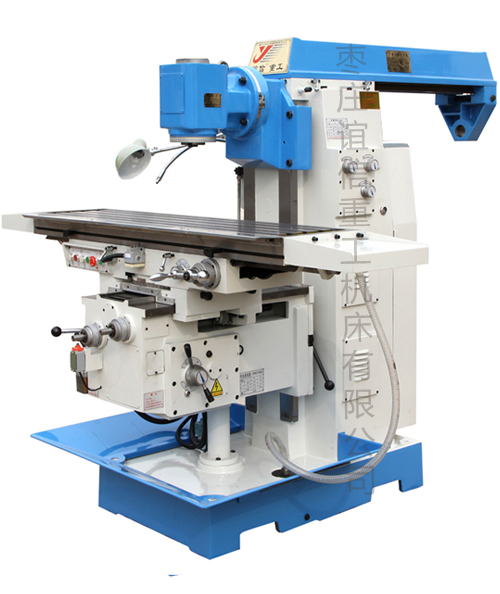

X6134A-1Universal Milling Machine
|
Parameter |
X6134A-1 |
|
The Workbench face Dimensions (W x L)(mm) |
340×1500 |
|
Workbench "T" type slot (slot number / width / spacing) |
3/20/80 |
|
Table travel (longitudinal, lateral, vertical)(mm) |
330/850/400 |
|
Spindle taper |
7:24 |
|
Spindle speed (range / series)(mm) |
40-1300 12Level |
|
Spindle centerline to table distance(mm) |
430 |
|
Table feed volume range (vertical / horizontal / vertical)(mm/min) |
20-630 |
|
Table feed to the series |
10级 |
|
The workbench rapid feed rate (vertical / horizontal / vertical)(mm/min) |
1200 |
|
Power of main motor(kw) |
3 |
|
Feed motor(kw) |
0.75 |
|
Workbench maximum rotation angle(°) |
±45° |
|
Overall dimensions (length × width × height)(mm) |
1450×1820×1850 |
|
Weight(kg) |
1850 |
