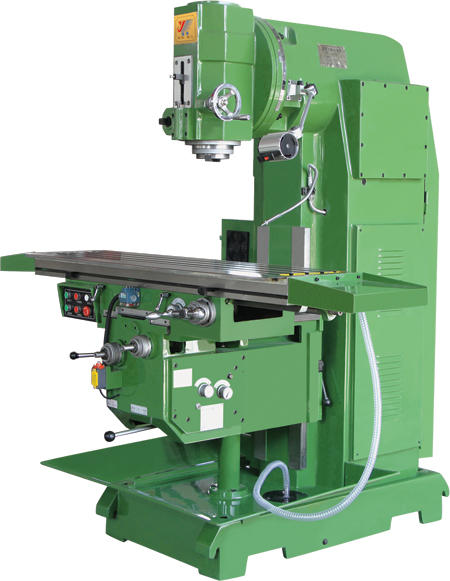

   X5034F Vertical Milling Machine

 Parameter

 X5034F

 Spindle nose to table distance(mm)

 100-600

 Spindle centerline to the distance of the vertical rails of the bed(mm)

 360

 Spindle taper

 7:24 ISO50

 Spindle speed (r.pm) continuously variable transmission

 30-1200

 Maximum turning angle of the vertical milling head

 ±45°

 Spindle axial movement distance(mm)

 70

 Bench face (width × length)(mm)

 340×1500

 Worktable vertical / horizontal / vertical (manual / motorized)(mm)

 1100/1050、 340/330、 550/500

 T-slot slot number / width / slot pitch(mm)

 3/20/80

 Power of main motor(kw)

 5.5

 Feed motor(kw)

 0.75

 Dimensions(mm)

 2250×1700×2100

 Machine weight(kg)

 2300
