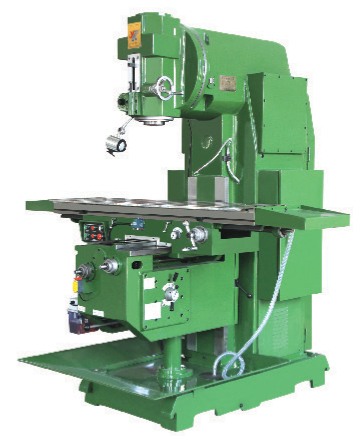

X5040 Vertical Milling Machine
|
Parameter |
X5040 |
|
Spindle nose to table distance(mm) |
100-650 |
|
Spindle centerline to the distance of the vertical rails of the bed(mm) |
460 |
|
Spindle taper |
7:24 ISO50 |
|
Spindle speed (r.pm) continuously variable transmission |
40-1200 |
|
Maximum turning angle of the vertical milling head |
±45° |
|
Spindle axial movement distance(mm) |
70 |
|
Bench face (width × length)(mm） |
400×1700 |
|
Worktable vertical / horizontal / vertical (manual / motorized)(mm) |
1150/1100、 420/400、 650/600 |
|
T-slot slot number / width / slot pitch(mm) |
5/20/80 |
|
Power of main motor(kw) |
7.5 |
|
Feed motor(kw) |
1.1 |
|
Dimensions(mm) |
2400×1900×2400 |
|
Machine weight（kg） |
3100 |
